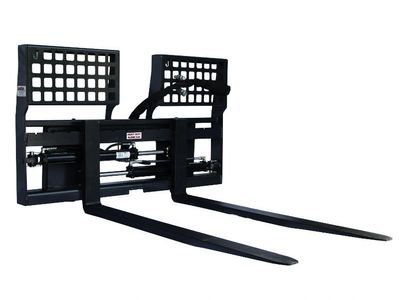

Hydraulic Sliding Pallet Forks

The forks used in our Hydraulic Sliding Pallet Fork are 5500 lb capacity.. Each forks is driven by its own hydraulic cylinder, allowing you to maneuver the them back and forth over the entirety of the carriage.

Our heavy-duty, walk-through pallet fork carriage is constructed of 1/4” screen material with an industry-leading 1 1/4” by 3” machined down top slider bar and a ½” lower slider bar. The walk-through carriage is designed to allow the skid steer door to swing over the top making it easy to get out of the cab with the forks attached. These attachments have as much roll back as possible for today’s cab-forward machines!

Various skid steer loader mounts are also available for those without universal skid steer quick attach, please call for additional information!

• 4′, 5′, and 6′ wide Carriage
• 4′, 5′ and 6′ Long 5500 lb capacity USA MADE FORKS!
• HD slider rails milled in house
• Hydraulic powered adjusting forks

Heavy-duty, Walk-Through Pallet Fork carriage is constructed of 1/4” screen material with an industry leading 1 1/4” by 3” machined down top slider bar and a ½” lower slider bar. The slider rails are machined to move the forks easily with one hand. Our forks are made in the USA and have a 5500 lb capacity.

The walk-through carriage is designed to allow the skid steer door to swing over the top of the attachment, making it easy to get out of the cab with the forks attached, and have as much roll back as possible for today’s cab forward machines!

• 4′, 5′, and 6′ wide Carriage
• 4′, 5′ and 6′ Long 5500 lb capacity USA MADE FORKS!
• HD slider rails milled in house

Construction Pallet Forks for a more durable frame and greater lifting capability.

• Durable powder coat finish
• Heat treated forks
• Replacement forks available
• Safety steps

Frame

Carriage Bars (inches) .50  A-36 Steel

Steps (inches)(2)  .6250  A-36 Steel

Sides (inches).1875  A-36 Steel

Grill (inches).1875  A-36 Steel

Fork Width Ranges (inches) 12 - 42

Frame Width (inches) 45.50

Frame Width w/steps (inches) 55.50

Frame Height (inches) 35

Fork Length (inches) 48

Fork & Frame Capacity (lbs.)4400

Also available:  fork length 60" and lifting capacity 5500lbs
